when we meshing the geometry,in many occasions , we need to measure the dimensions of the geometrical feature such as line length, arc/circle radius, angles, distance between two geometrical elements ,etc. does CoreForm Cubit has the plan to add the measuring tools?
thanks.
Hi @simxpert,

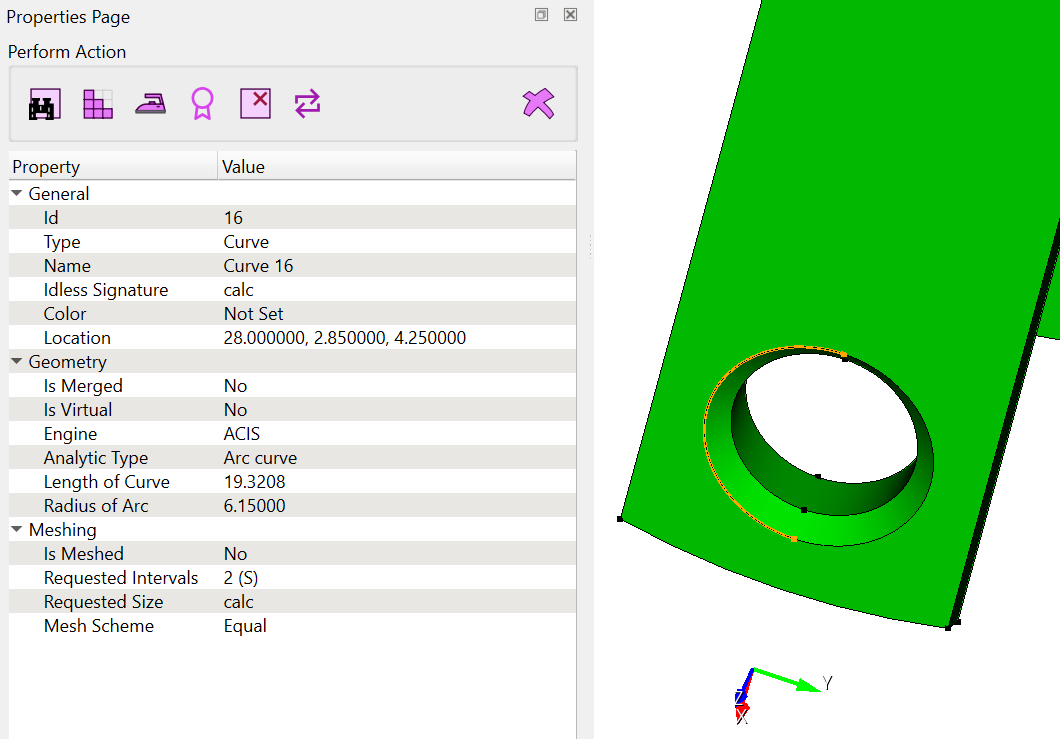

There are some measuring tools in Coreform Cubit. First is the properties page where, after you select an entity, it will display some useful properties about the entity:

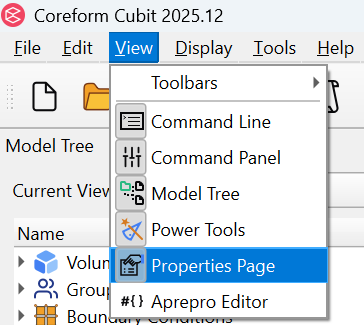

If you don’t see the properties page, you can render it by selecting it from the View menubar:

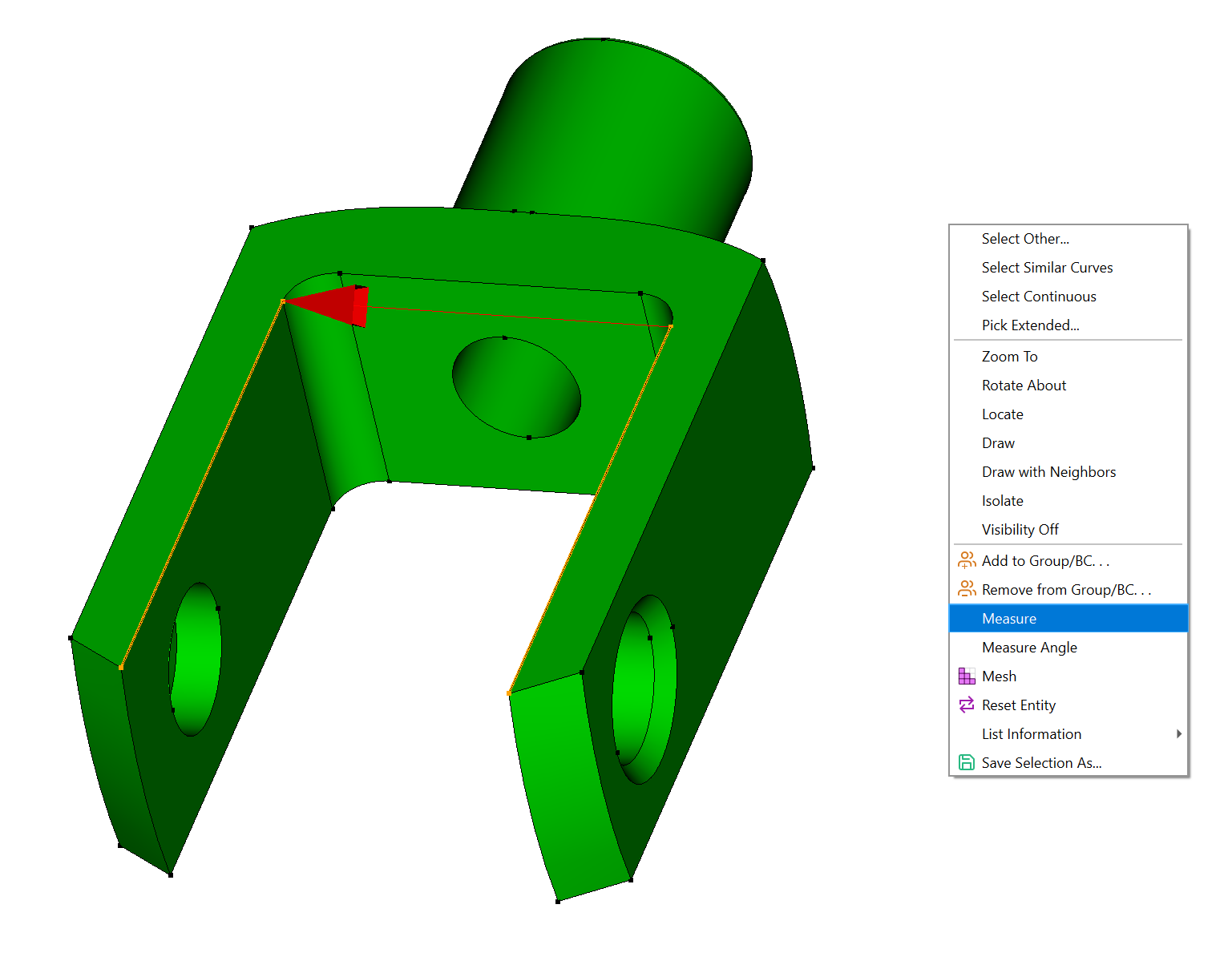

Another option is that you can select two entities and right-click to open the context menu where there are options for measuring the distance and the angle between the entities. An arrow will render showing you where the measurements occurred
The measurements will then be printed into the command line:
DX = 0.00000000000000
DY = 0.00000000000000
DZ = 26.75000000000000
Distance between Curve 36 and Curve 32 is 26.75000000000000
Finished Command: measure between Curve 36 Curve 32
