Hex mesh for intersections at curves

Hey coreform cubit community,

I have a small question how to create a hex mesh for this stent-like structure:

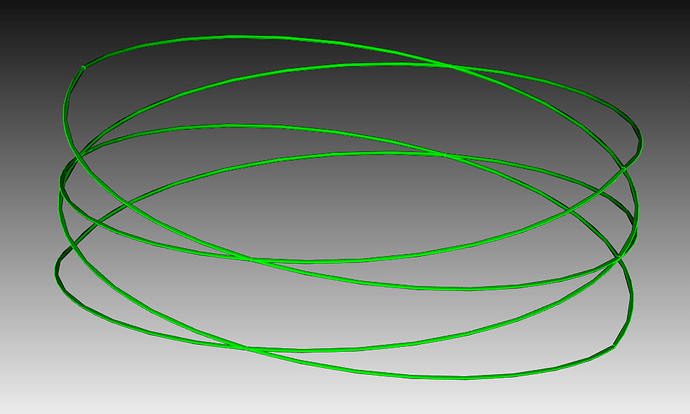

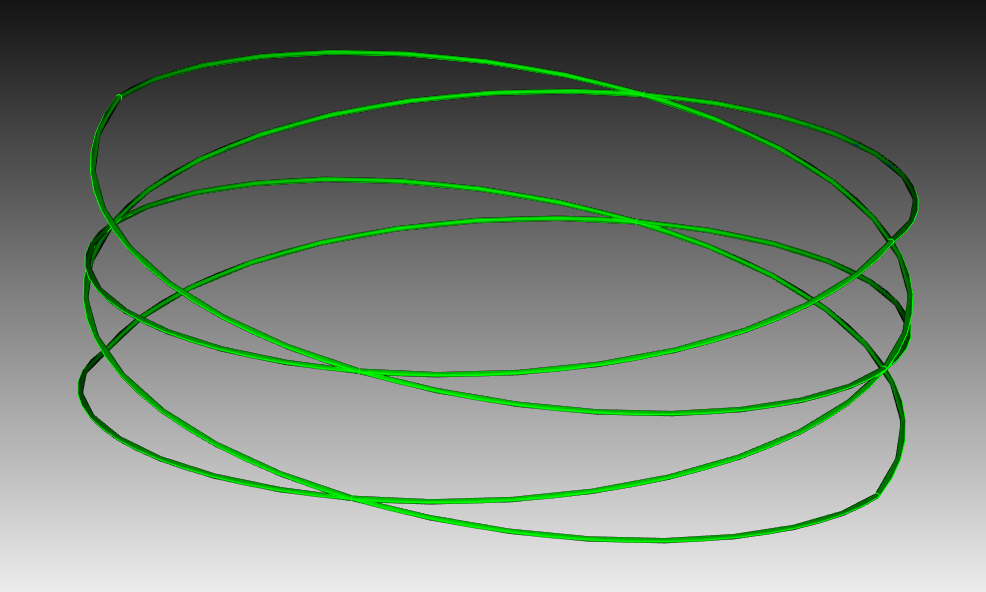

I created this volume by sweeping a cylinder along this helix curves and uniting 2 curves into to a single volume as displayed in green.

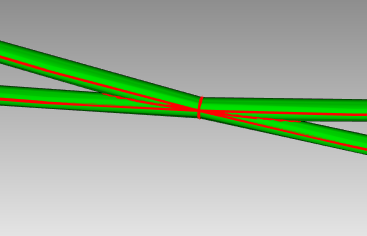

The volume intersects now see here:
intersection

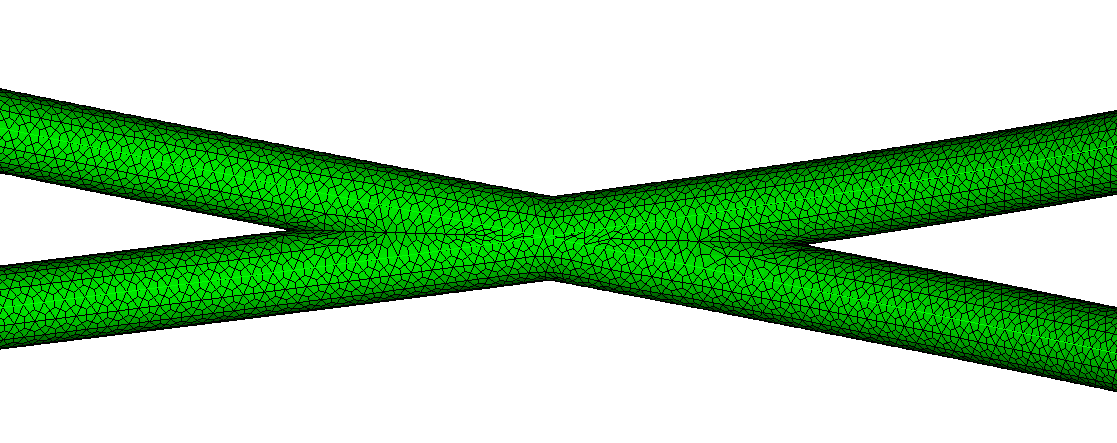

I started by meshing the initial circle and extrude it along the curve, however the sweeped hex mesh of each individual helix is removed during unification of the volumes.

What’s now the best way to mesh this volume with hex elements?

Hi @knarfnitram,
i couldn’t find a good decomposition that doesn’t end up with very skewed elements.
So i got 2 options left if you need hex elements.

The first one is using THex.

#!cubit
reset
create surface circle radius 0.3 xplane
move surface 1 z 10

sweep surface 1 helix yaxis thread_distance 10 angle 360 right_handed  keep
sweep surface 1 helix yaxis thread_distance 10 angle 360 left_handed  keep

delete body 1
unite vol all
compress

composite create surface 1 to 4
Volume 1 scheme tetmesh
volume 1 size auto factor 6
mesh volume 1
thex vol 1

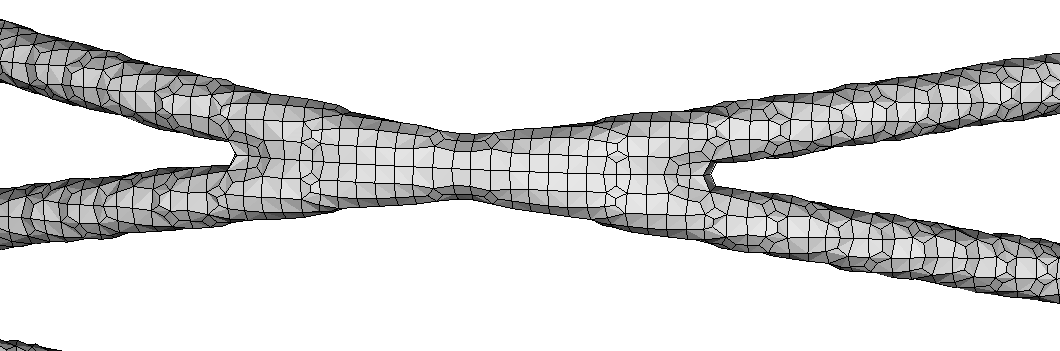

The second one is using sculpt.

#!cubit
reset
create surface circle radius 0.3 xplane
move surface 1 z 10

sweep surface 1 helix yaxis thread_distance 10 angle 360 right_handed  keep
sweep surface 1 helix yaxis thread_distance 10 angle 360 left_handed  keep

delete body 1
unite vol all
compress

sculpt vol all

A third option would be to introduce cuts around the crosses and specify those regions as tetmeshes. I think you would have to mesh all the swept regions first and then mesh the crosses to create a tetmesh with a pyramid interface. Don’t forget to imprint and merge.

Karl

Hey Norbert and kgmerkley

thanks for your answers and suggestions of thex, sculpt and tetmesh for the junctions.
I tested sculpt and thex - but I’m not quite happy with the mesh quality.

But cutting out the junction seems to be an option, so I’ll take a look if i get meshed the junction with hex.

Best
Martin

@knarfnitram

How would something like this work for you?

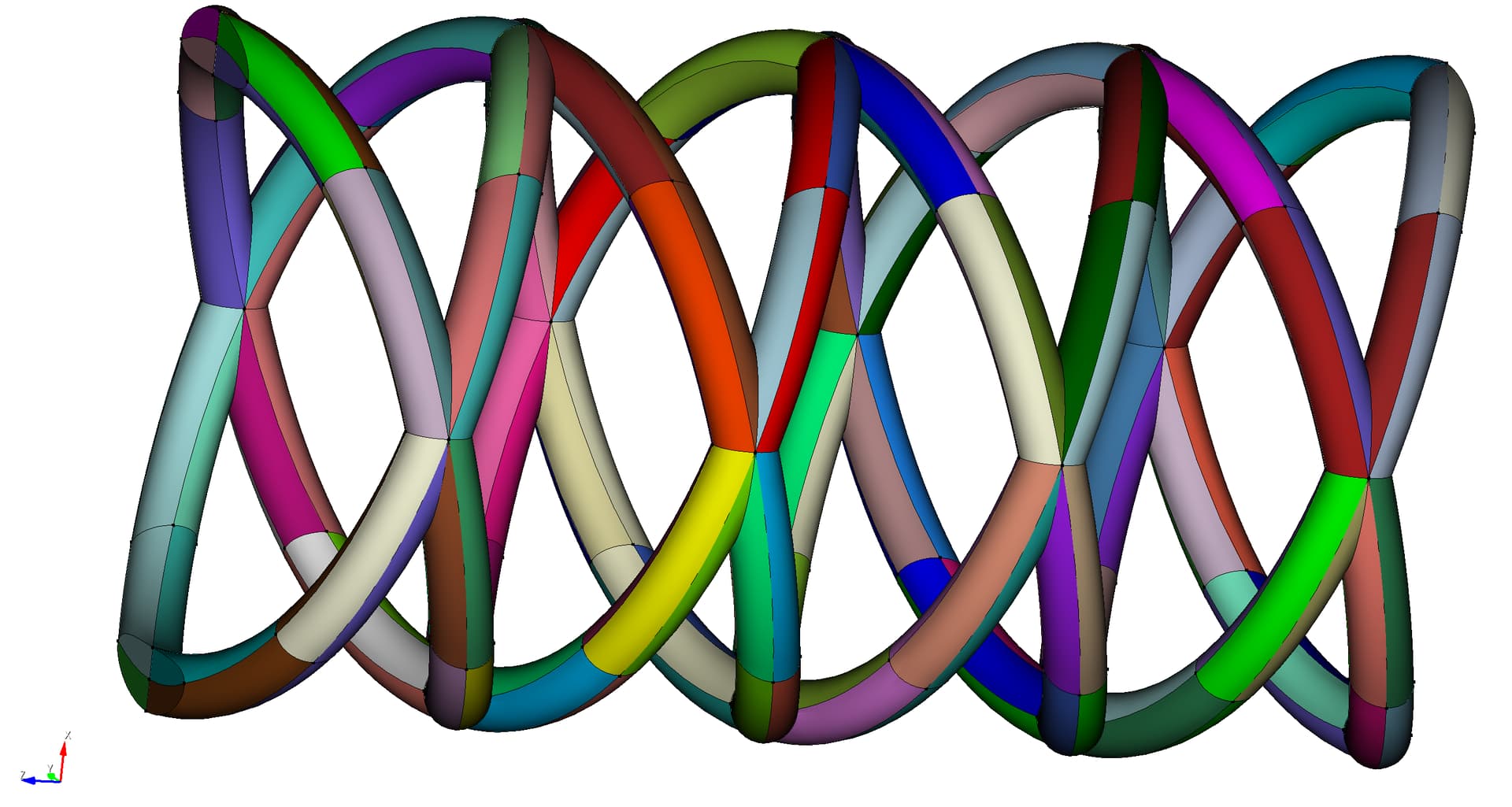

Decomposition

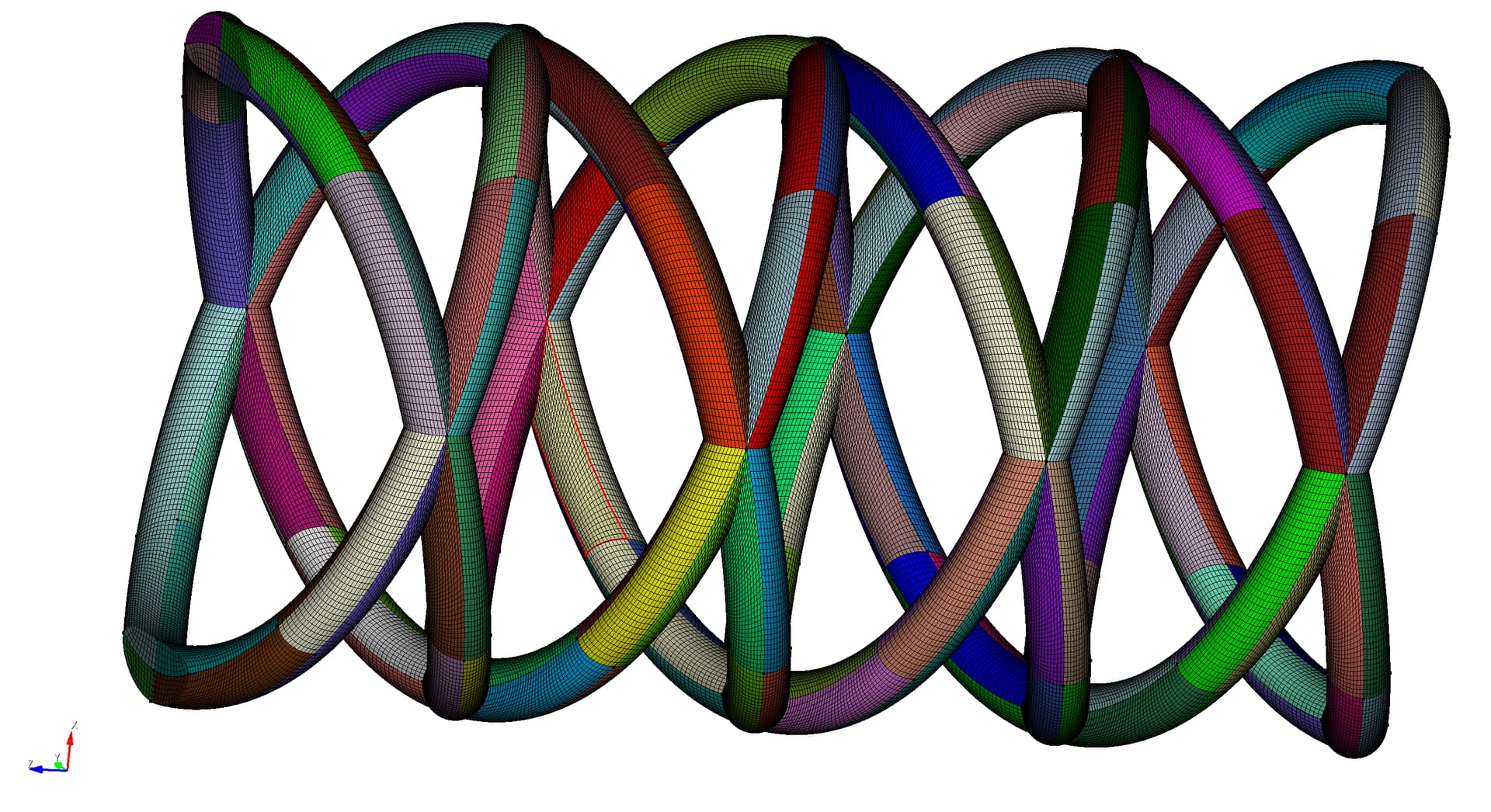

Mesh

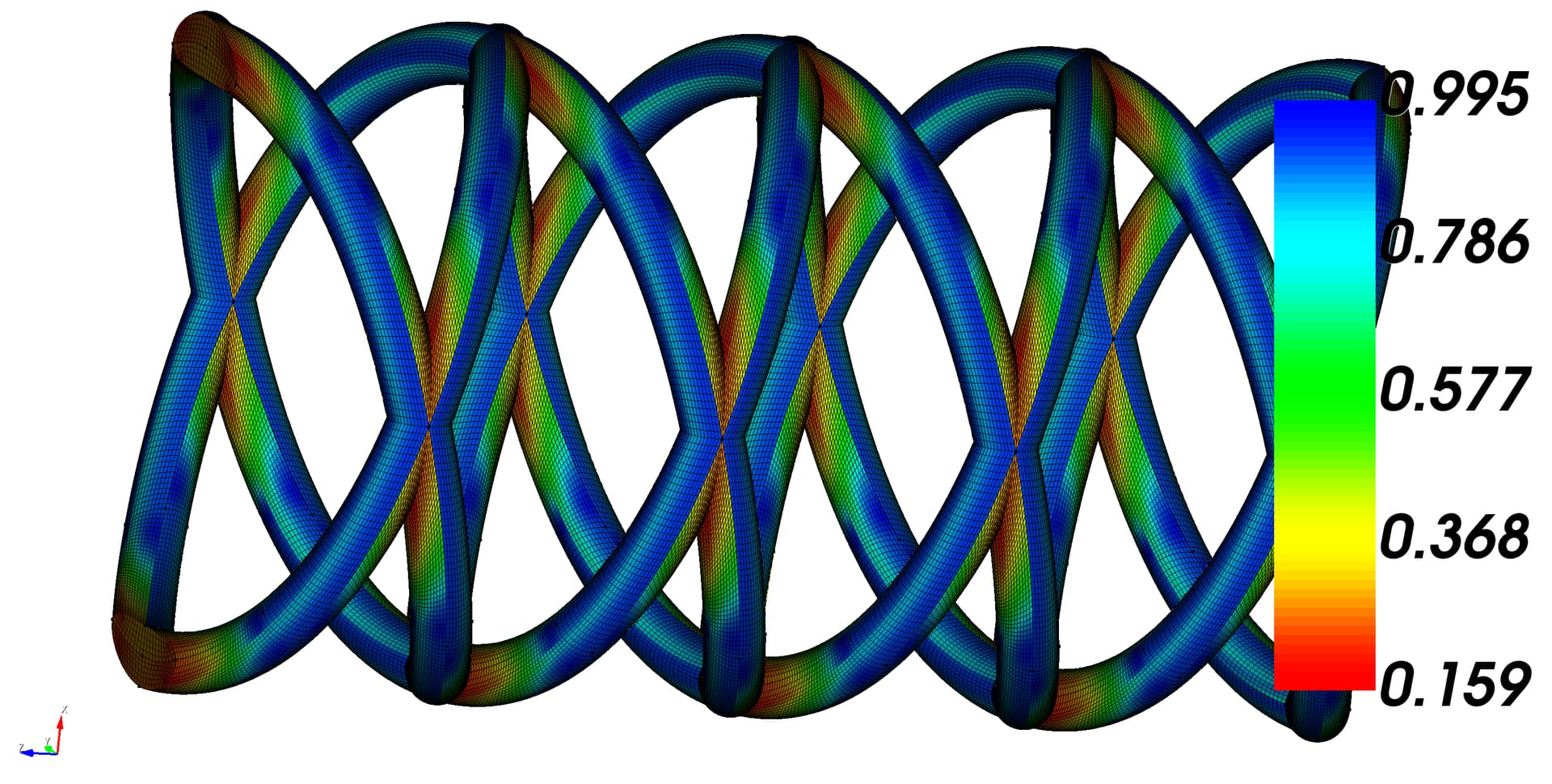

Mesh quality - Scaled Jacobian

Here’s a download link (good for ~10 days) of the CUB5 file: https://transfer.coreform.com/OYSRNRmDnN/helix_mesh.cub5

1 Like

Hey @gvernon

yes, that’s how I am currently also decomposing it. Thanks to all for the help and good overview of different meshing strategies!

Best
Martin
